TempoTec Sonata HD Ⅱ

$29.90
For Android phones MAC and PC(Windows 10 Only)

PRODUCT FEATURES

Input

TYPE-C

Output

3.5mm earphone port

Product length

11.3cm

SNR

116dB

OUTPUT POWER

70mw/32ohm

SUPPORT

PCM 32bit/384khz, DSD 128 (DOP)

SUPPORT

2VRMS/600ohm

DAC Model

ES9270

What is different with Sonata HD and Sonata HD lI?
A new generation of TYPE-C to 3.5 mm earphone port decoding headphone amplifier audio cable

 Sonata HD Ⅱ

A new generation of TYPE-C to 3.5 mm earphone port decoding headphone amplifier audio cable

3.5mm earphone port & TYPE-C

3.5mm earphone port & TYPE-C
Using 4-core 6N single crystal copper HIFI cable, higher sound quality transmission, more robust and durable

4-core 6N single crystal copper HIFI cable

Using 4-core 6N single crystal copper HIFI cable, higher sound quality transmission, more robust and durable

Adopt ES9270 high-performance audio dedcoding chip

Support PCM 32bit/384 and DSD128

Support PCM 32bit/384 and DSD128
The use of an independent active low-phase noise oscillator ensures the accuracy of digital audio transmission from different signal sources (mobile phones or computers) and makes the sound reproduction more realistic.

Use independent low phase noise active crystal oscillator

The use of an independent active low-phase noise oscillator ensures the accuracy of digital audio transmission from different signal sources (mobile phones or computers) and makes the sound reproduction more realistic.

Connection Steps

First, contect the earphone and Sonata HD Ⅱ.

Second, connect to smart mobile phone or computer.

This order cannot be reversed.

First, contect the earphone and Sonata HD Ⅱ.  Second, connect to smart mobile phone or computer.  This order cannot be reversed.

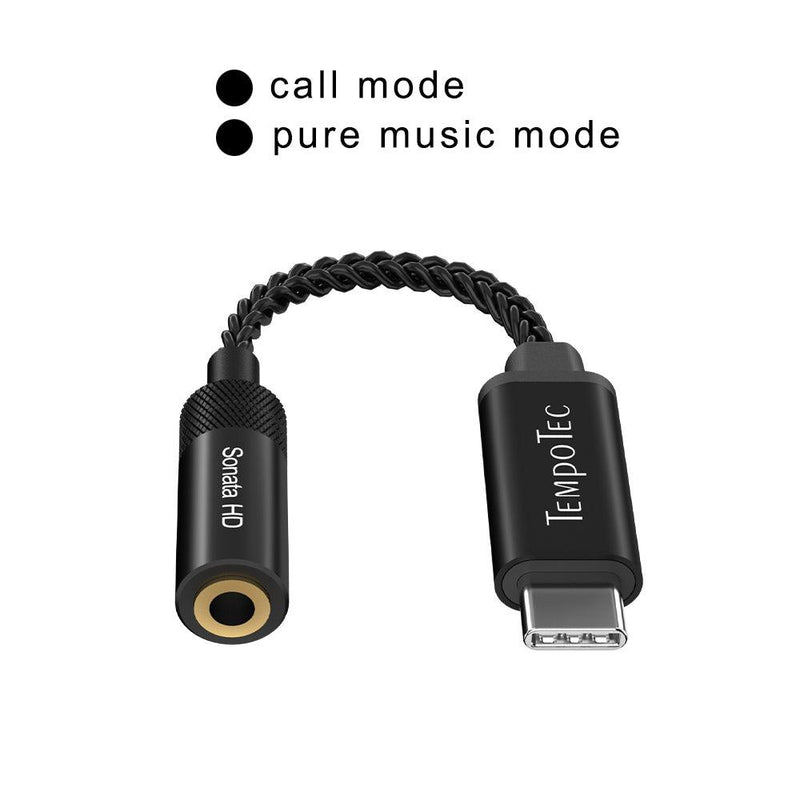

Free switching between two modes

Two mode of Sonata HD II can be selected, either “Call mode” or "Pure music mode".

When connected with a pair of earphones WITH Microphone, it is under the “Call mode”, you can anwser phone call through Sonata HD II. if use a pair of earphones WITHOUT Microphone, it enters the “Pure music mode”.

Tip: Please plug your earphones into Sonata HD II first, then put them together into your mobile phone or computer.

No need to change firmware when you want to switch between “Call mode” and “Pure music mode” , just use different earphones.

When using a earphone without MIC, it enters the

Pure music mode

When using a earphone without MIC, it enters the "Pure music mode"

Call mode

When connected with a earphone with MIC, it enters the “Call mode”

When connected with a earphone with MIC, it enters the “Call mode”

Please Note:

Sonata HD II cannot use the key on earphone.

Sonata HD II supports mic by plug earphone with mic directly.

Sonata HD II cannot use the key on earphone.   Sonata HD II supports mic by plug earphone with mic directly.
For PC, it just support Window10 now.  Sonata HD II cannot be directly inserted into the PC/Laptop.  Because of the high current, it will damage the Sonata HD II .   Please use the Adapter(female type-c to male USB-A) to connect the PC/Laptop.

Connect your PC/Laptop via USB Adapter

For PC, it just support Window10 now.

Sonata HD II cannot be directly inserted into the PC/Laptop.

Because of the high current, it will damage the Sonata HD II .

 Please use the Adapter(female type-c to male USB-A) to connect the PC/Laptop.

Length: 11.3 cm

Length: 11.3 cm
1, Please make sure you have turned

Here are serval tips to be used

1, Please make sure you have turned"USB Debugging" mode on of your phone.

 2. Please confirm that your phone supports "OTG" function.

3. if you have done the first 2 tips and it still doesn't work, please try to download professional music app, such as poweramp, hiby music...

Input: TYPE-C. Output: 3.5mm earphone port. Product length: 11.3cm. SNR: 116dB. OUTPUT POWER: 70mw/32ohm. SUPPORT : PCM 32bit/384khz, DSD 128 (DOP). SUPPORT: 2VRMS/600ohm.
